Gaia Payload Module undergoing acceptance vibration testing

Gaia Payload Module undergoing acceptance vibration testing


Date: 07 September 2012
Satellite: Gaia
Depicts: Gaia Payload Module
Location: Intespace Toulouse, France
Copyright: Astrium SAS

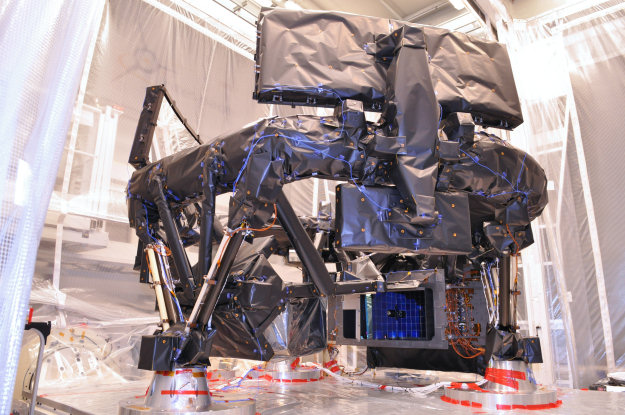

Fully integrated Gaia protoflight Payload Module (PLM) undergoing acceptance vibration testing on an electrodynamic shaker at the facilities of Intespace in Toulouse, France.

Qualification level vibration testing of the PLM was performed in June 2011, with many components represented by mass dummies. With all flight model components installed, the PLM was tested again, at lower excitation levels, to verify the integrity of the completed system. For acceptance testing, the PLM was subjected to swept-sinusoidal excitation along its Y and Z axes (both horizontal in this configuration).

The PLM is surrounded by a plastic tent to prevent contamination.
