Venus Express coverage of Venus during 1-28 April, 2012

Venus Express coverage of Venus during 1-28 April, 2012


Date: 23 August 2012
Satellite: Venus Express
Depicts: Planet coverage during medium term plan (MTP) 78
Copyright: ESA

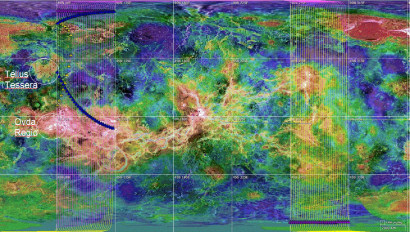

This figure shows coverage of Venus by orbital tracks during the reporting period 1-28 April 2012 (medium term plan (MTP) #78). The orbit sequence to the left shows the ascending branch. Purple triangles along the top are pericentre locations (on right, at the top of the descending branch) and along the bottom are apocentre locations (on right, at the bottom of the descending node). In the ascending branch, yellow triangles denote start and end of solar eclipse; blue triangles denote beginning and end of Earth occultations.

During this period observations of the ground features Ovda Regio and Tellus Tessera were made.

Last Update: 1 September 2019
