Constructing the LISA Pathfinder flight optical bench

Constructing the LISA Pathfinder flight optical bench


Date: 14 June 2013
Satellite: LISA Pathfinder
Depicts: Flight optical bench
Copyright: University of Glasgow

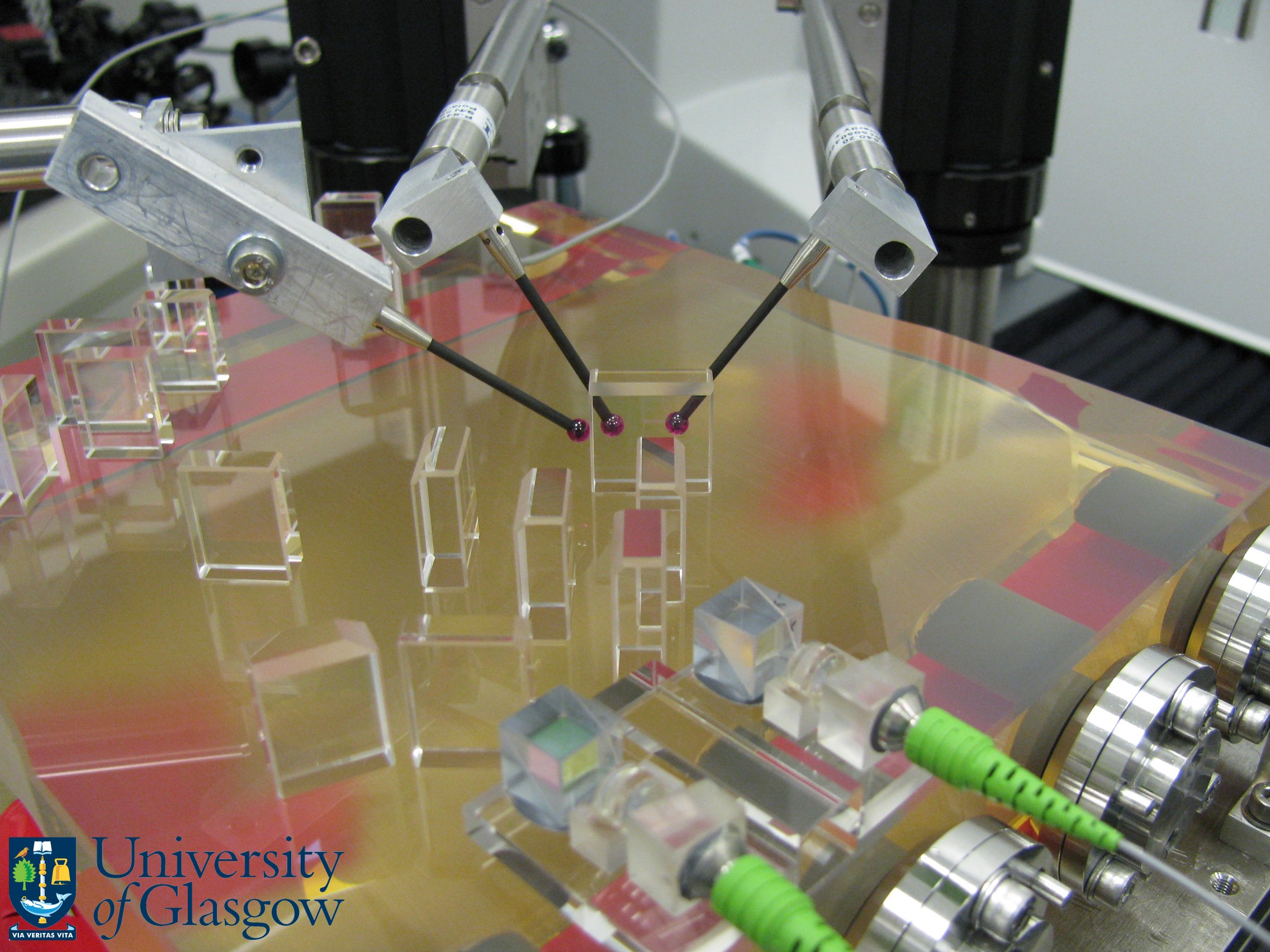

The LISA Pathfinder flight optical bench pictured during construction. The "tombstone" components are precision bonded to the optical bench. The bench is a 20cm by 20cm block of Zerodur ceramic glass. The components that require high precision alignment are bonded individually. Each is positioned against ruby balls that are mounted on micrometer and piezo driven stages. The positions of the ruby balls are varied until the component is in the correct position. The component is then hydroxide-catalysis bonded into place.

Last Update: 1 September 2019
