LISA Pathfinder Inertial Sensor Head

LISA Pathfinder Inertial Sensor Head


Date: 11 December 2013
Satellite: LISA Pathfinder
Depicts: Inertial Sensor Head
Copyright: CGS

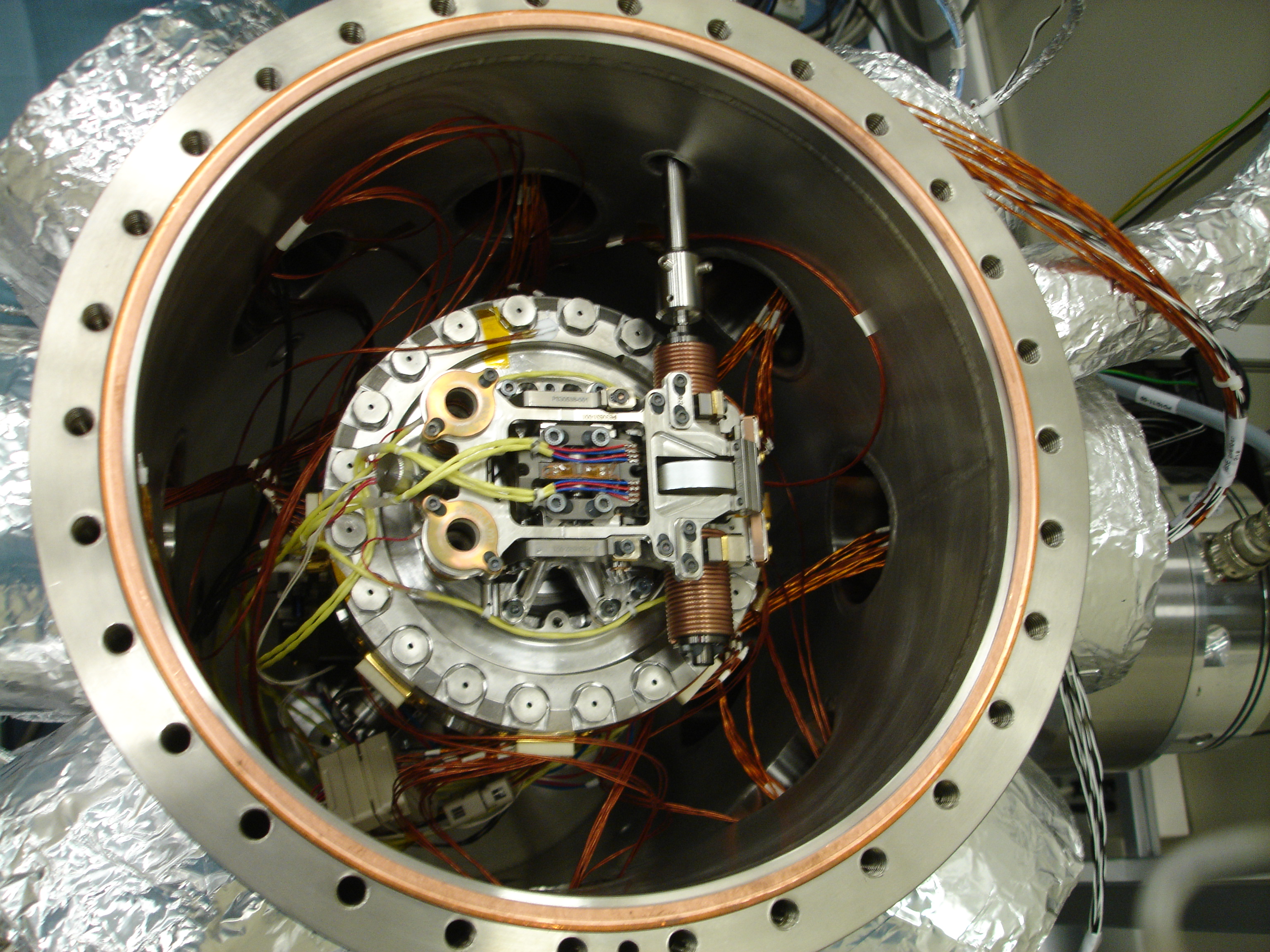

This picture shows a top view of the engineering qualification model of the LISA Pathfinder Inertial Sensor Head.

The LISA Pathfinder Inertial Sensor Head is designed to keep a cubic (46 mm × 46 mm × 46 mm) gold:platinum test mass, located at the centre, free from all external forces except inertial gravity.

Packed in a titanium vacuum enclosure, roughly 43 cm tall and 18 cm wide, are the support structure, capacitive sensing and actuation electrodes, and mechanisms to hold, position and release the test mass once the spacecraft is on orbit.

Feedback loops and micro-propulsion thrusters are used to keep the spacecraft centred on the test mass. A charge management system comprising fibre-coupled UV lamps will counteract the build up of electrostatic forces from cosmic rays and solar particles by discharging the test mass at regular intervals.
