Rotation of BepiColombo's solar arrays

Rotation of BepiColombo's solar arrays


Date: 03 November 2018
Satellite: BepiColombo
Depicts: MTM solar array
Copyright: ESA/BepiColombo/MTM, CC BY-SA 3.0 IGO

On 4 November 2018 the Mercury Transfer Module (MTM) of the ESA-JAXA BepiColombo mission was commanded to conduct a special one-off activity, called the "solar array drive run-in". This operation consisted of performing several rotations of the MTM solar array over its full movement range, to clean the solar array drive mechanism slip ring from contaminants accumulated during the long ground testing phase before launch.

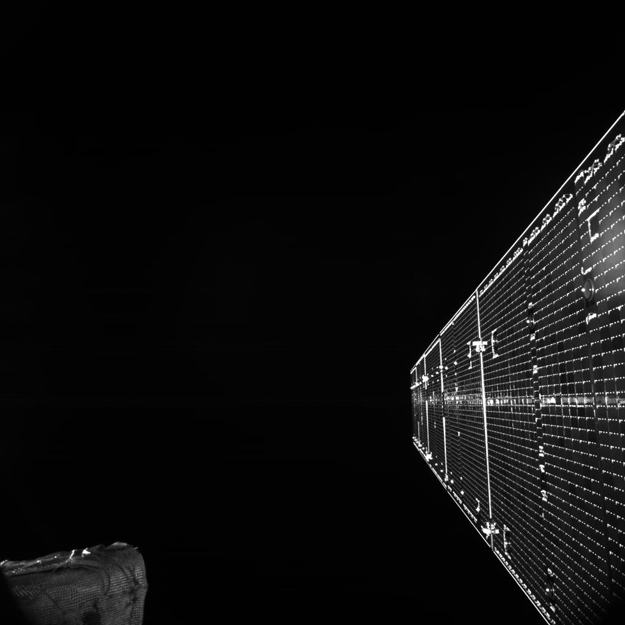

The operation saw the back side of the arrays turned towards the Sun, and at the same time into the field of view of one of the MTM's monitoring cameras – M-CAM 1. The movement from 0° to 140° is seen in this sequence of images. The solar cells covering the five panels of one of the 15 m-long solar arrays are seen in the first part of the sequence. Towards the middle, part of the yoke connecting the array to the spacecraft body can be seen. In the latter part of the sequence the exquisite details of the cabling and mechanisms on the backside of the array are seen.

Each image has an exposure time of 20 milliseconds and a resolution of 1024 × 1024 pixels. The structure seen in the bottom left corner is one of the sun sensor units on the MTM, with the multi-layered insulation visible.

BepiColombo is a joint endeavour between ESA and the Japan Aerospace Exploration Agency, JAXA. The European built MTM is carrying ESA's Mercury Planetary Orbiter and JAXA's Mercury Magnetospheric Orbiter on a seven year journey to the smallest and least explored planet in the inner Solar System. It is the first Mercury mission to send two science orbiters to make complementary measurements of the planet and its dynamic environment at the same time.


This work is licensed under a Creative Commons Attribution-ShareAlike 3.0 IGO License. Creative Commons License
