Two elements of the Gaia torus

Two elements of the Gaia torus


Date: 22 July 2009
Satellite: Gaia
Depicts: Two elements of the Gaia torus
Location: BOOSTEC premises at Bazet near Tarbes, France
Copyright: ESA

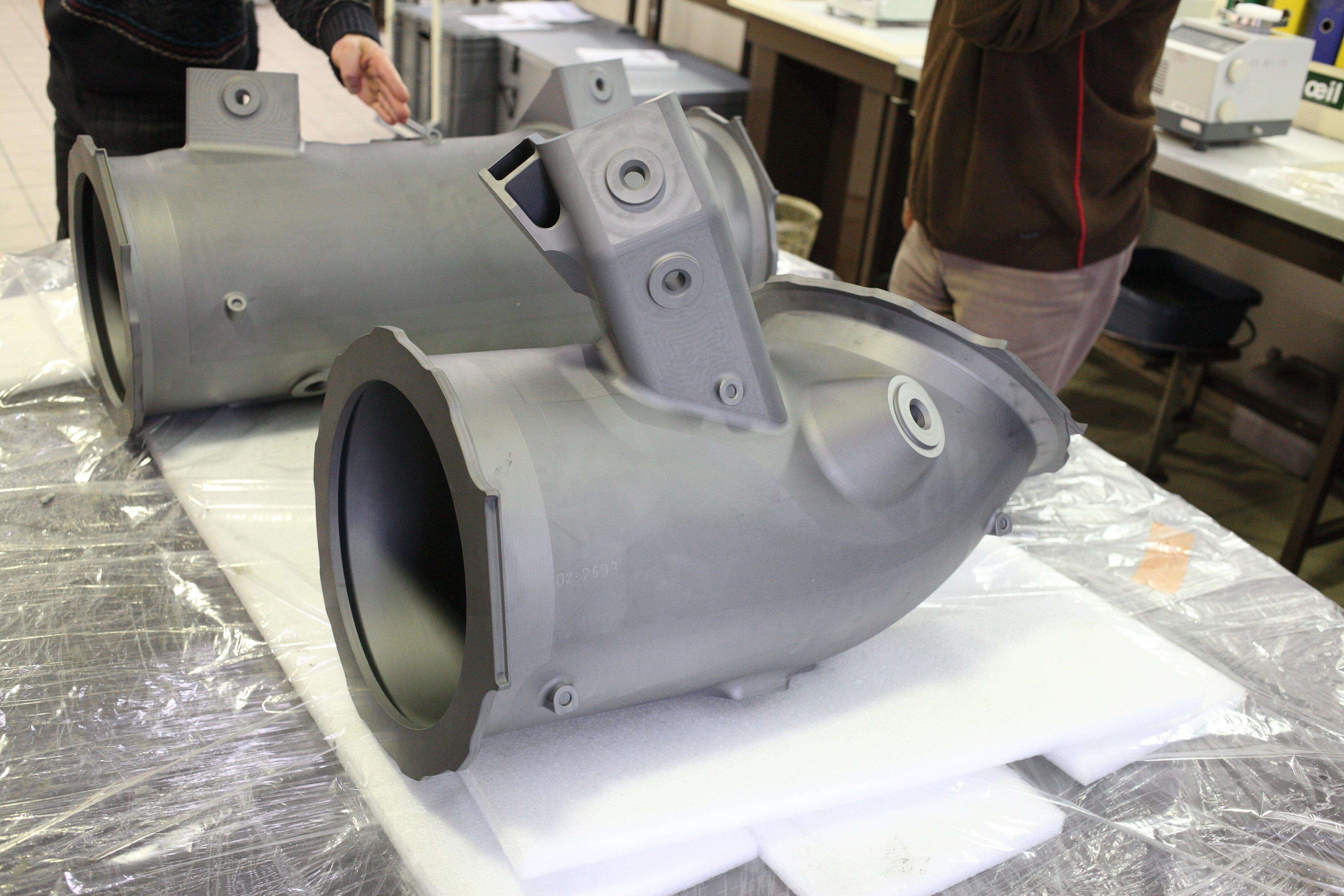

The Gaia torus is composed of 17 individual custom-built Silicon Carbide segments. Each segment features reference points and boreholes to facilitate quality control. These are clearly visible in the two segments shown in this photograph.

Starting on 28 April 2009 the 17 custom-built elements were assembled and aligned into the form of the torus. The torus brazing took place from 24 – 29 June 2009.

All elements of the torus are constructed from Silicon Carbide (SiC), a ceramic material whose physical characteristics make it the material of choice for structures which must be both light-weight and robust. The low thermal expansion coefficient and high thermal conductivity of SiC mean that it is a very stable material which can quickly dissipate thermal gradients, and with a Young's Modulus of about 420 GPa it is twice as stiff as steel. These are essential properties for the key hardware components of a mission whose scientific goals include obtaining microarcsecond astrometry of 1 billion celestial objects.

The individual segments of the torus were built by BOOSTEC, a subcontractor to the Gaia prime contractor EADS Astrium. BOOSTEC also performed the brazing of the torus.
