The complete Gaia CCD array (flight model)

The complete Gaia CCD array (flight model)

Date: 06 June 2011
Satellite: Gaia
Depicts: All Gaia CCDs integrated onto the CCD support structure
Location: Astrium, Toulouse, France
Copyright: Astrium

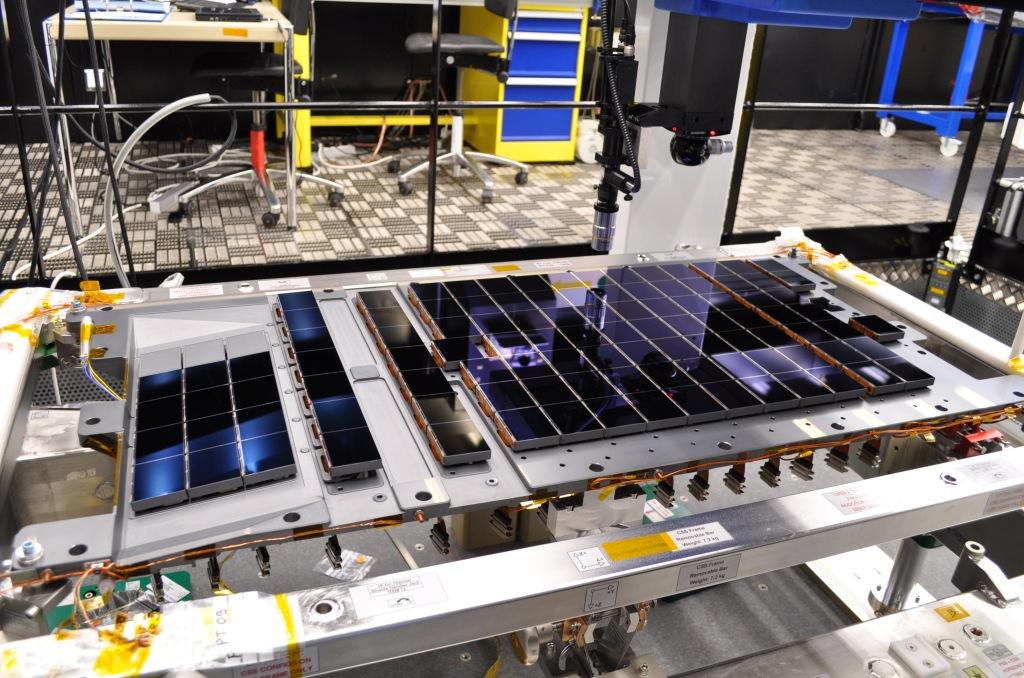

This photo, taken at the Astrium France facility in Toulouse, shows the complete set of 106 CCDs that make up Gaia's focal plane. The CCDs are bolted to the CCD support structure (CSS). The CSS (the grey plate underneath the CCDs in this photo) weighs about 20 kg and is made of silicon carbide (SiC), a material that provides remarkable thermal and mechanical stability. The focal plane measures 1 × 0.5 metres.

Gaia's CCDs are provided by e2v Technologies of Chelmsford, UK. Each CCD measures 6 × 4.7 cm, with a thickness of only a few tens of microns. Precisely fitted together on the CSS, the gap between adjacent CCD packages is about 1 millimetre.

From left to right in this photo, distinct areas on the focal plane can be seen:

  • 3 columns of 4 CCDs for the Radial Velocity Spectrometer (RVS),
  • 1 column of 7 CCDs for the Red Photometer,
  • 1 column of 7 CCDs for the Blue Photometer,
  • 9 columns of 7 CCDs forming the Astrometric field (except for the middle CCD of the first column (slightly offset toward the Blue Photometer column), which is one of the two wave front sensors),
  • 2 columns of 7 CCDs for the sky mapper,
  • 1 column with 3 CCDs: two basic angle monitors (top right), and one wave front sensor.
