NIRSpec acoustic and vibration testing, June 2013

NIRSpec acoustic and vibration testing, June 2013


Date: 20 June 2013
Satellite: JWST

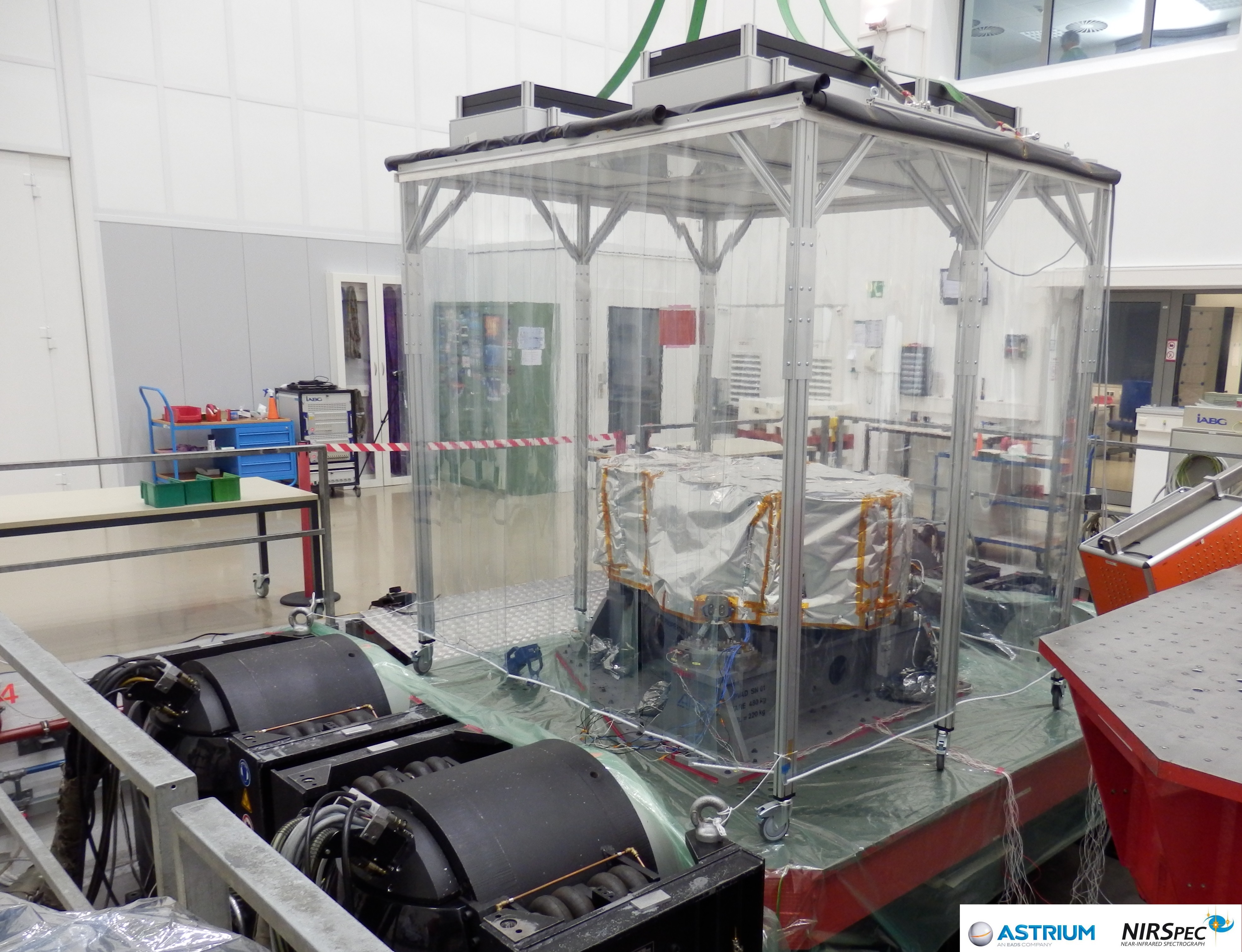

Depicts: NIRSpec on shaker table
Copyright: EADS Astrium

JWST's Near InfraRed Spectrograph (NIRSpec) acoustic and vibration test campaigns were undertaken at the IABG test facility in Germany by EADS Astrium. During the tests, NIRSpec was exposed to vibrations and sounds that mimic the conditions it will experience during the launch onboard an Ariane 5.

The silver coloured multilayer insulation with orange tape is a protective cover over NIRSpec. This cover remains in place during flight. The instrument is bolted to a large vibration table ("shaker") under a portable cleanroom tent.

After these harsh tests, NIRSpec was inspected for damage – none was found. The optical alignment  was also checked, and found not to have changed.

NIRSpec is developed by ESA with EADS Astrium Germany GmbH as the prime contractor.

Last Update: 1 September 2019
