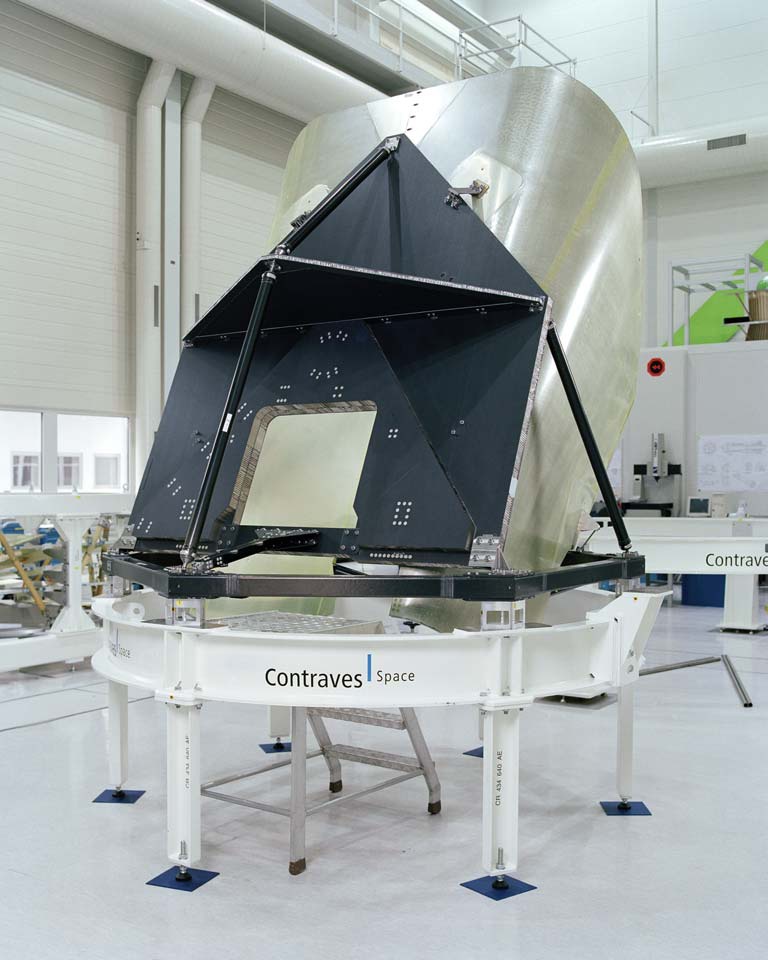

Telescope Frame and Baffle - Qualification Model
Date: 09 February 2004
Depicts: Qualification model of the telescope frame and baffle
Location: Cleanroom at Contraves, Zurich
Copyright: 2004 ESA / Contraves Space AG
The baffle serves to prevent unwanted, off-axis radiation from entering the telecope. The frame supports the telescope mirrors and the focal plane unit containing the instrument detectors.
The qualification model of the spacecraft structure will be tested to validate the mechanical design.
