Planck Flight Model Spacecraft

Planck Flight Model Spacecraft


Date: 28 November 2007
Satellite: Planck
Depicts: Flight Model spacecraft
Location: Alcatel Alenia Space, Cannes, France
Copyright: AAS

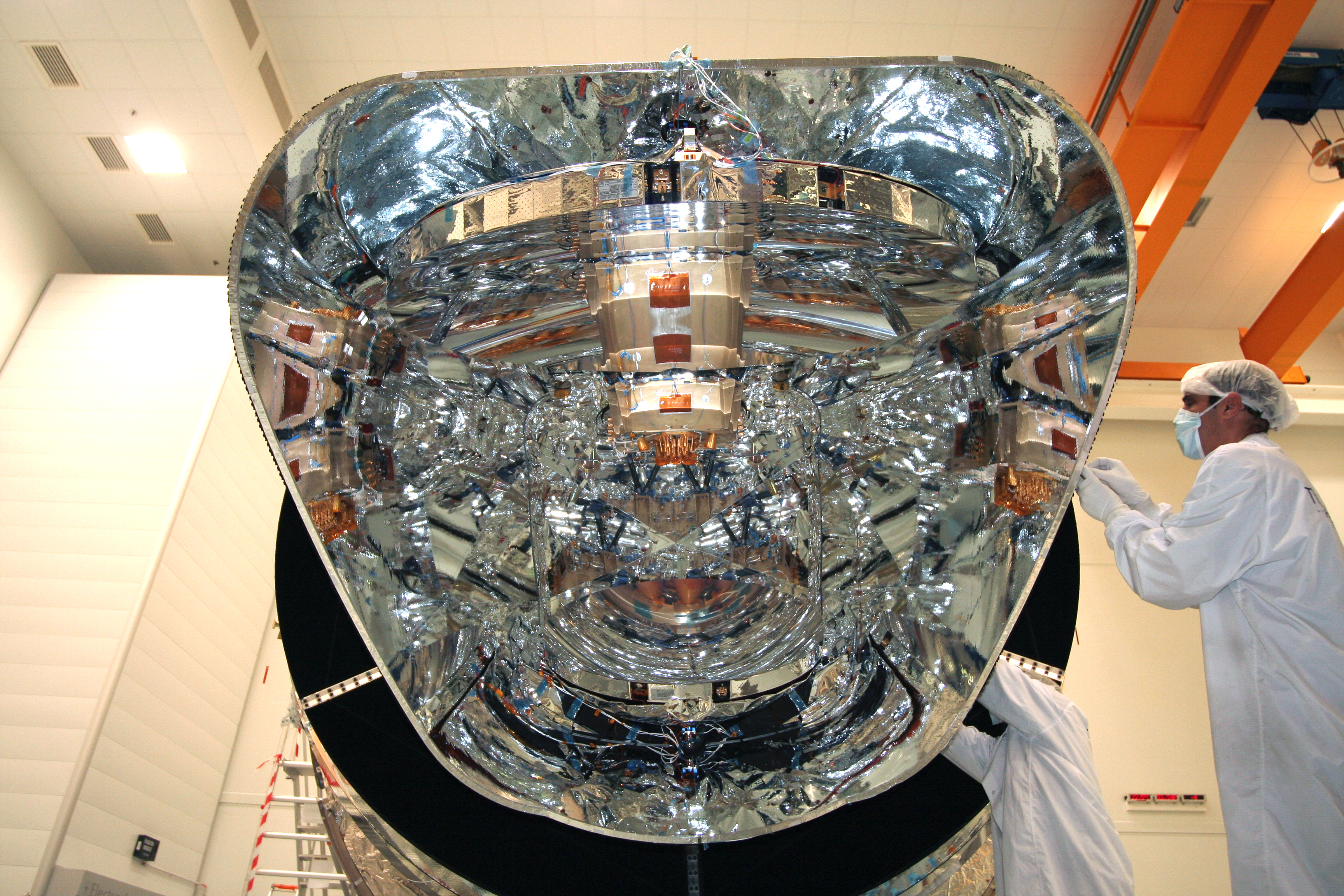

Top view of the Planck Flight Model spacecraft during preparations for the mechanical vibration tests, which took place December 2007 in Cannes.

The primary reflector (top) and secondary reflector (bottom) of the Planck telescope can be seen as well as the Focal Plane Unit of the Planck instruments with the feedhorns (below the primary reflector).

The payload baffle with its silvered inner part surrounds the telescope and restricts the entry of stray radiation into the telescope optics.

The black surface seen behind the telescope is the third (upper) V-groove that is part of the cooling system used both to passively cool down to about 50 K and to shield the telescope from the warmer, Sun-facing, service module.
