BepiColombo Mercury Composite Spacecraft on the Multishaker

BepiColombo Mercury Composite Spacecraft on the Multishaker


Date: 31 July 2012
Satellite: BepiColombo
Depicts: Mercury Composite Spacecraft
Location: European Space Research and Technology Centre (ESTEC), the Netherlands
Copyright: ESA

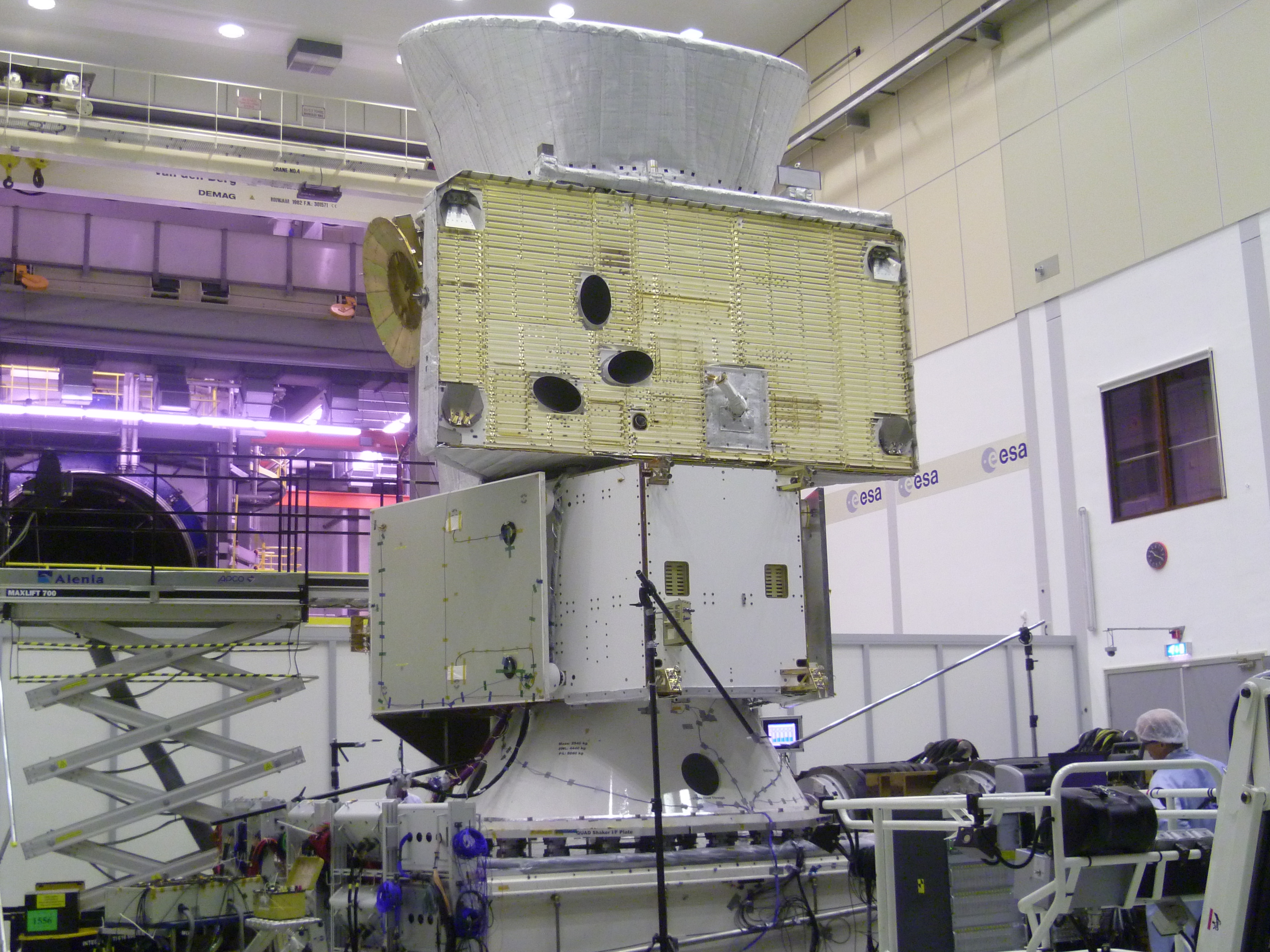

The BepiColombo Mercury Composite Spacecraft on the Multishaker in the Test Centre at ESA's European Space Research and Technology Centre (ESTEC) in Noordwijk, the Netherlands, prior to a low-level sinusoidal vibration test run along the X-axis.

On the left facing side of the Mercury Transfer Module, which is at the bottom of the stack and just above the cone-shaped Vibration Test Adapter (VTA), is a mass dummy representing one of the two solar array panels in its stowed configuration.

On the Mercury Planetary Orbiter, which is the centre spacecraft in the stack, the mass dummy of the high-gain antenna can be seen on the left, partially concealed behind the radiator used to reject heat from the orbiter's internal systems to cold space and the titanium louvres that will reflect away infrared radiation coming from the surface of Mercury.


Last Update: 1 September 2019
