Turning BepiColombo's high-gain antenna

Turning BepiColombo's high-gain antenna


Date: 27 November 2018
Satellite: BepiColombo
Depicts: High-gain antenna
Copyright: ESA/BepiColombo/MTM, CC BY-SA 3.0 IGO

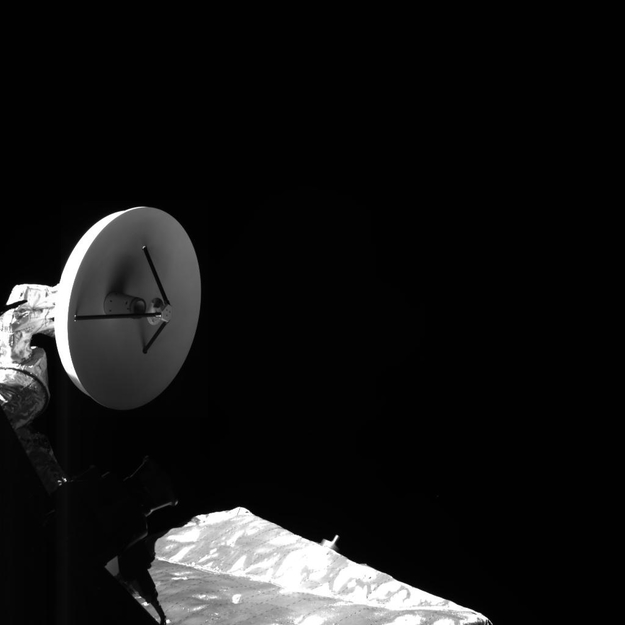

One frame in a sequence of images capturing the rotation of the Mercury Planetary Orbiter's high-gain antenna. The images show the main reflector dish, with the three struts holding the sub-reflector and the antenna feed at the centre of the main reflector dish clearly visible. The side of the Mercury Planetary Orbiter with the low-gain antenna, which protrudes from the side of the module, is also visible, together with some detail of the spacecraft's multi-layered insulation.

The image was taken on 28 November 2018 by one of the Mercury Transfer Module's monitoring cameras, M-CAM 3. The image combines two pictures with different exposure times to account for the different brightness levels of different parts of the spacecraft.


This work is licensed under a Creative Commons Attribution-ShareAlike 3.0 IGO License. Creative Commons License

Last Update: 1 September 2019
