Projected Footprints of Satellites

Projected Footprints of Satellites


Date: 26 July 2007
Satellite: Cluster
Depicts: Earth's northern hemisphere with satellite footprints
Copyright: Dr. Rae, University of Alberta, Edmonton, Canada

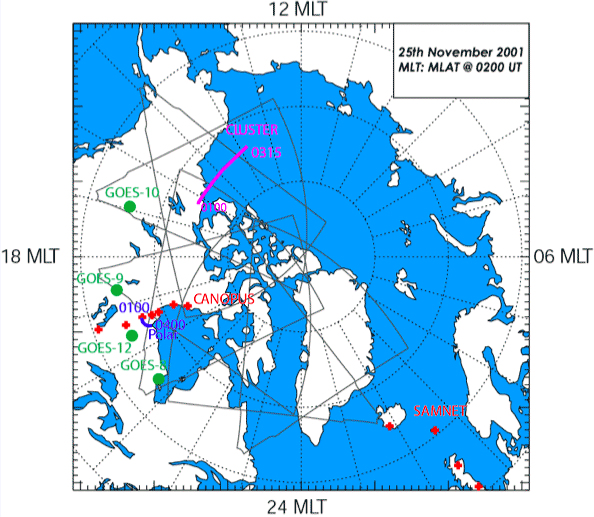

Ionospheric footprints of several spacecraft on 25 November 2001 around 0200 UT, obtained by projecting the spacecraft location along the Earth's magnetic field lines:

  • in blue for the Polar spacecraft (0100-0400 UT)
  • in purple for Cluster (0000-0130 UT)
  • in green for the geostationary GOES satellites

The projection looks down on the northern hemisphere with noon (12 hours in Magnetic Local Time) at the top of the figure. The field-of-view of 6 High Frequency (HF) radars of the SuperDARN network, enabling the observation of plasma flows in the ionosphere, is indicated in black. In red, the positions of the CANOPUS now called CARISMA (University of Alberta, Canada) and SAMNET (Lancaster University, UK) magnetometers chains.

Last Update: 1 September 2019
