Fractures of Claritas Fossae
Date: 19 January 2005
Satellite: Mars Express
Copyright: ESA/DLR/FU Berlin, CC BY-SA IGO 3.0

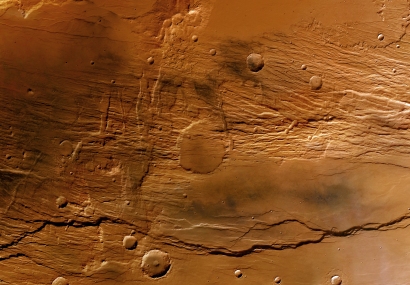

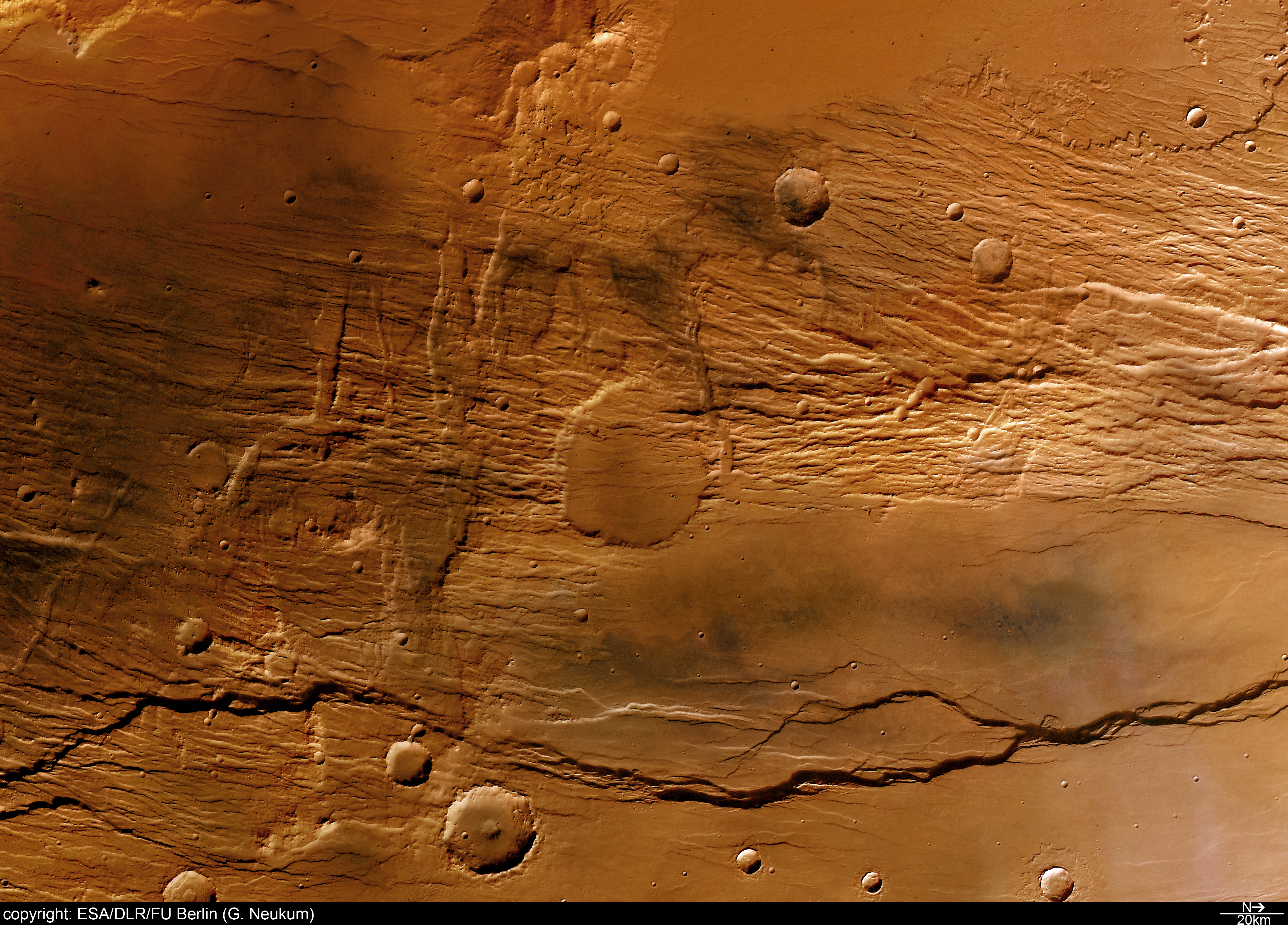

This image, taken by the High Resolution Stereo Camera (HRSC) on board ESA's Mars Express spacecraft, shows Claritas Fossae, a series of linear fractures located in the Tharsis region of Mars. The HRSC obtained this image during orbit 563, with a resolution of approximately 62 metres per pixel. The image shows a region centred on latitude 25° South and longitude 253° East. North is to the right.
Claritas Fossae is located on the Tharsis rise, south of the three large volcanoes known as the Tharsis Montes, and extends roughly north to south for approximately 1800 kilometres. The linear fractures of Claritas Fossae have widths ranging from a few kilometres to 100 kilometres, and the region is about 150 kilometres wide in the north and 550 kilometres wide in the south.
These fractures are radial to the Tharsis rise, consistent with the idea that they are the result of enormous stresses associated with formation of the 8-10 kilometre high Tharsis rise. Faults running east to west are also visible in this image and may have a similar origin. In the east of the image (bottom), a prominent linear feature with a dark shadow is visible. This is most likely a normal fault, the eastern edge of a 100 kilometre wide graben. A graben is a block of Mars's crust which has dropped down due to an extension, or pulling, of the crust. This graben is characterised by a smooth surface and the difference in height between the edge of the graben and the plains east of the normal fault is roughly 2.3 kilometres. Alternatively, this feature may have resulted from surface collapse due to magma withdrawal.
The smooth surfaces in the image suggest this terrain has been resurfaced by lava flows. The observation that the lava flows have covered some of these faults, particularly in the west (top) and north-east (bottom-right) of the image, suggests that Claritas Fossae is older than the surrounding terrain. The outline of a crater with a diameter of 50 kilometres is visible in the centre of the image. The softened appearance of the crater, and especially the observation that fractures extend across the crater, suggest this crater pre-dates the formation of the fractures. South of this crater, a faint outline is visible with a diameter of 70 kilometres, which may be another ancient crater.
West of these two craters, at the top of the image, there is a small region with an interesting morphology. These features seem to be weakly influenced by the north-south fractures. While the cause of emplacement of this terrain is still unclear, collapse of the surface due to the removal of subsurface ice might be responsible for these features.
This colour image was processed using the HRSC nadir (vertical view) and three colour channels. Image resolution has been decreased for use on the internet.
