Huygens Receivers AGC Values History
Date: 03 February 2000

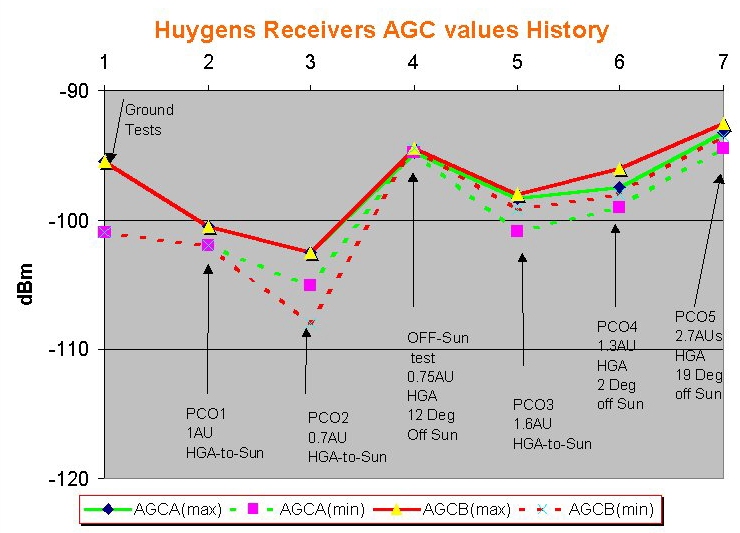

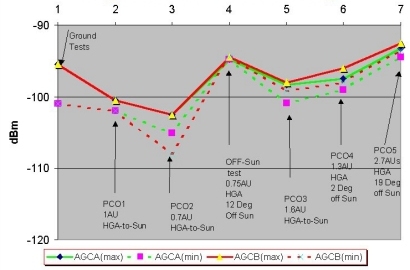

Depicts: Plot of AGC values history up to the 5th probe checkout
This plot shows the history of the AGC measurements during all checkouts, the special Off-Sun test carried out after the 2nd checkout and the reference ground test measurements.
The AGC level during the 5th checkout varied between about -92 and -94 dBm which is the best value ever obtained to date.
