Testing the CHEOPS scientific instrument

Testing the CHEOPS scientific instrument

Date: 24 May 2017
Satellite: CHEOPS
Copyright: University of Bern

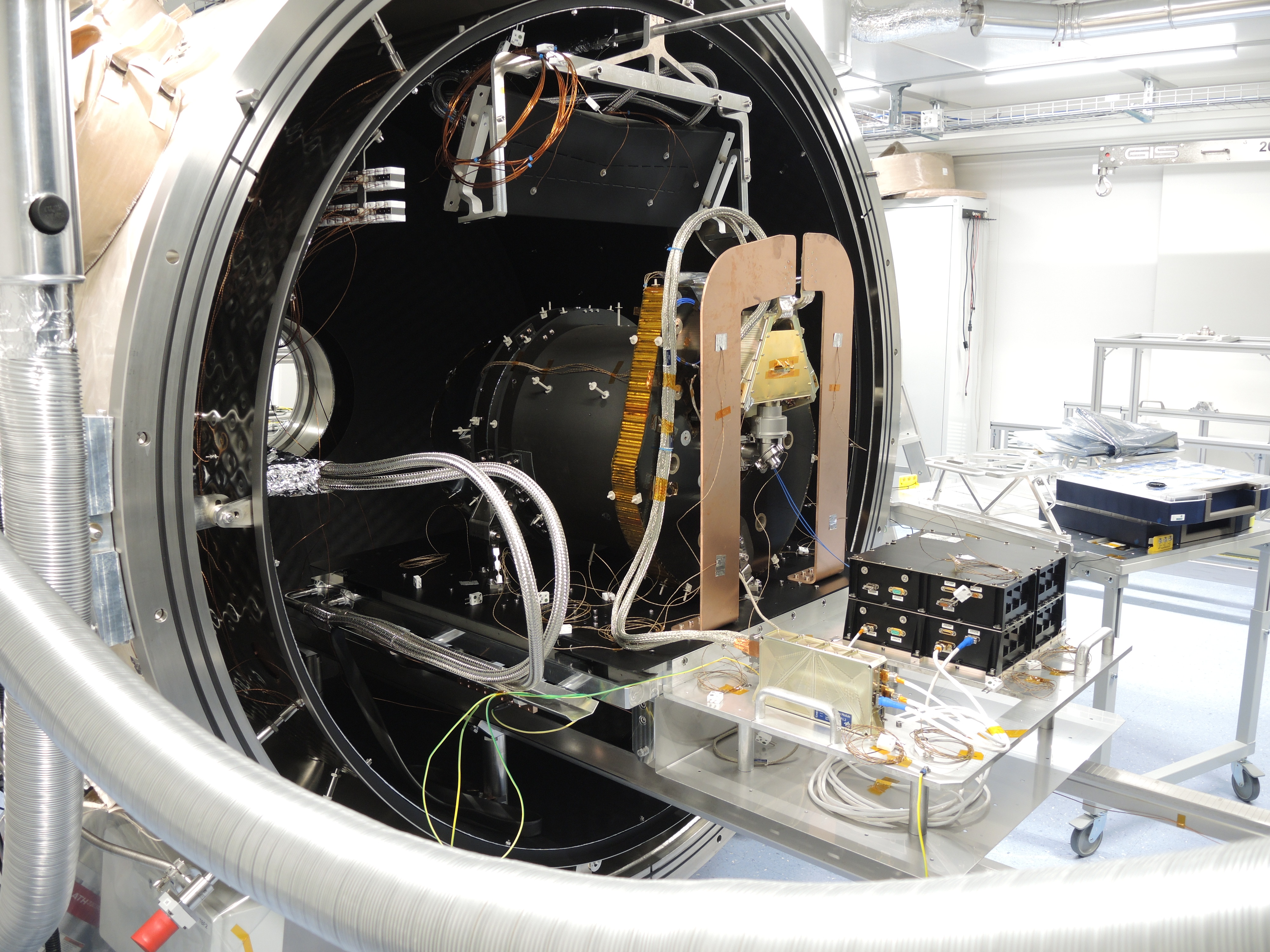

The CHEOPS scientific instrument is pictured here being loaded into the thermal vacuum chamber at the University of Bern, for testing.

The instrument consists of a photometer with a single CCD, operating between 0.4 µm and 1.05 µm, that is at the focal plane of an on-axis Ritchey-Chrétien telescope of 33 cm diameter.

In the picture, the telescope tube points towards a window in the chamber through which light can be offered during testing. Light entering the telescope is detected by the bronze-coloured Focal Plane Module (FPM), which houses the CCD detector array and the Front-End Electronics.

These tests are carried out to ensure that the alignment of the FPM performed in ambient conditions results in correctly focussed images once in orbit.

Last Update: 1 September 2019
