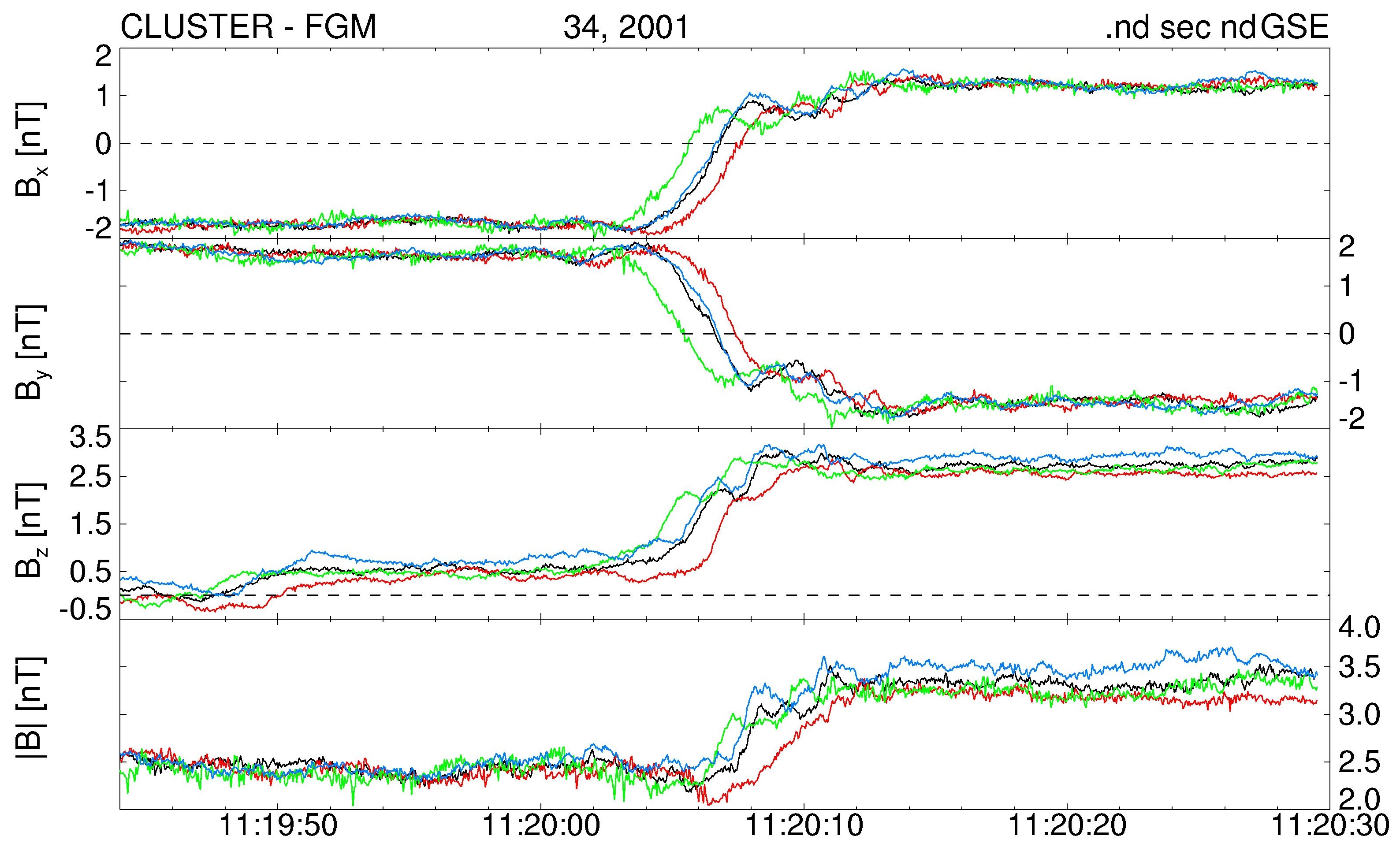

Directional Discontinuity (DD) measured by the FGM instrument on all four Cluster spacecraft in the solar wind, free of foreshock activity. From top to bottom the plot shows the B_x, B_y, B_z components and magnitude of the DC magnetic field (Cluster 1: black; Cluster 2: red; Cluster 3: green; Cluster 4: blue).

Time lags between the different spacecraft, used by the triangulation method, are clearly visible in every panel. A significant increase of the Interplanetary Magnetic Field magnitude is visible in the bottom panel.

Knowing that |B_n| is small (not shown) as any other case of this statistical study (see also 'Four-point observations of solar wind discontinuities'), it indicates that this DD is a tangential discontinuity.
