Gaia M4 mirror

Gaia M4 mirror


Date: 15 December 2009
Satellite: Gaia
Depicts: Inspection of M4 mirror
Location: Advanced Mechanical and Optical Systems (AMOS) in Liege, Belgium
Copyright: ESA

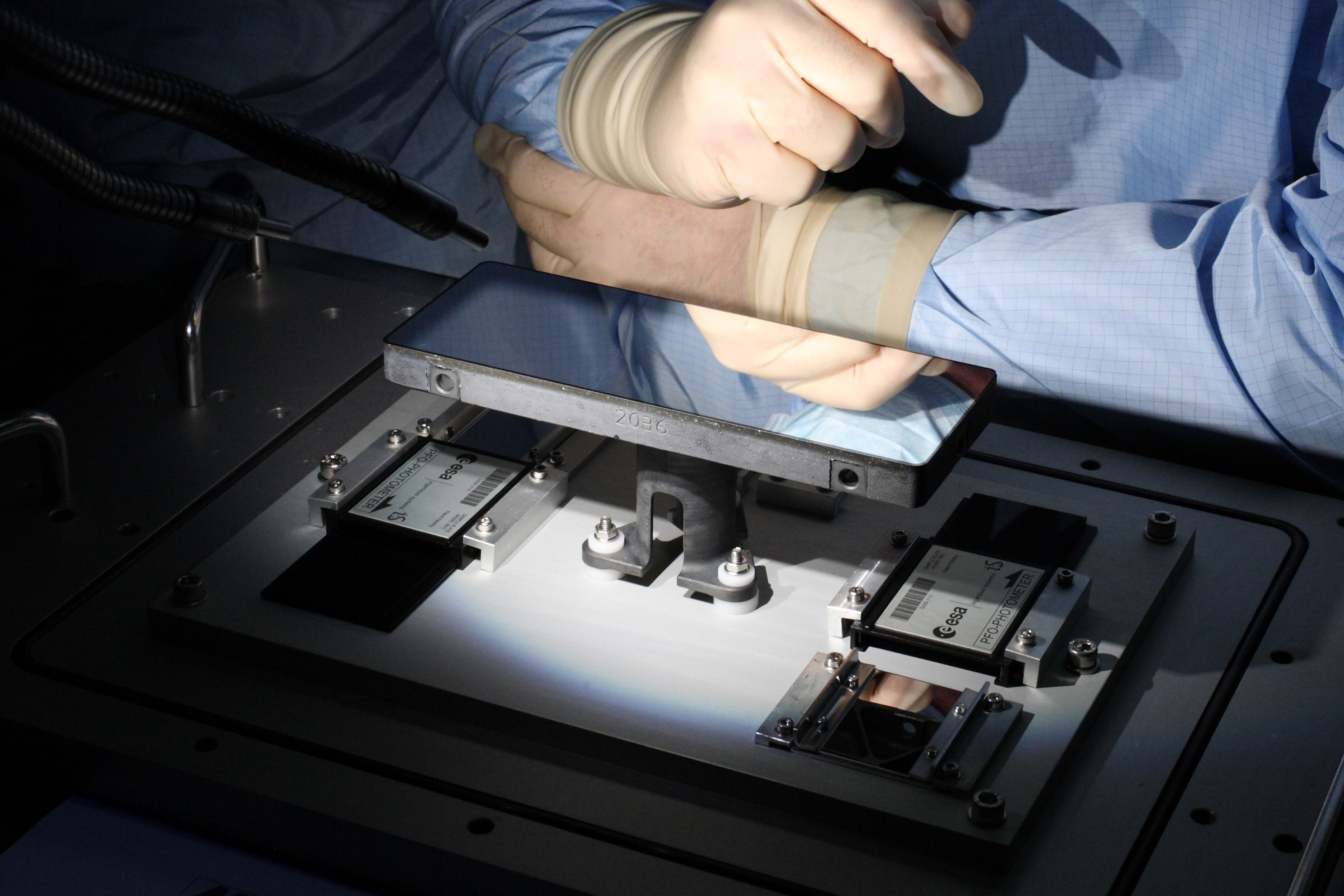

One of two Gaia M4 mirrors undergoing inspection at the premises of Advanced Mechanical and Optical Systems (AMOS) in Liege, Belgium, in December 2009.

The 190 × 69 mm mirror was fabricated from sintered silicon carbide (SiC) by Boostec at Bazet near Tarbes, France.

The mirror surface was coated with a layer of silicon carbide using chemical vapour deposition (CVD). The CVD layer of all Gaia mirrors is applied by Schunk Kohlenstofftechnik in Heuchelheim, Germany.



Last Update: 1 September 2019
