Active Region No. 905

Active Region No. 905


Date: 27 August 2006
Satellite: SOHO
Depicts: MDI magnetogram of the Sun
Copyright: SOHO/MDI (ESA & NASA)

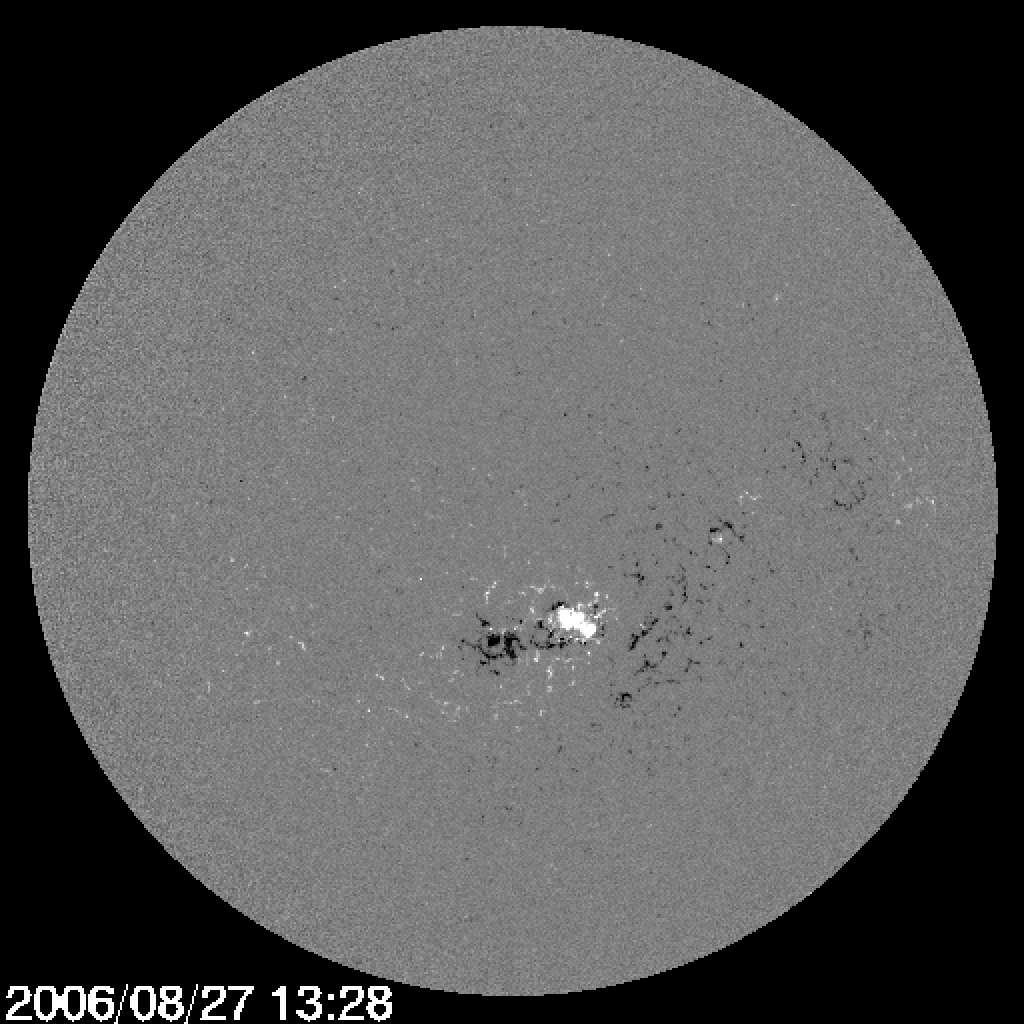

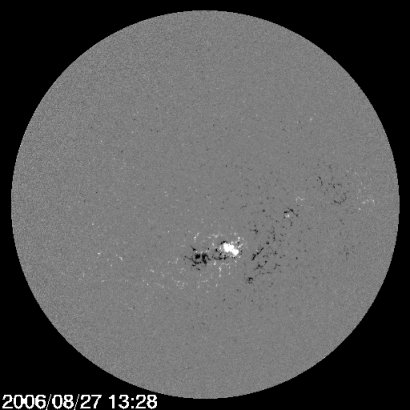

This magnetogram of the Sun's disk was obtained by the MDI instrument on board SOHO on 27 August 2006. The magnetogram shows the strength and sign of the magnetic field in the Sun's photosphere in greyscale:

  • White = strongly positive, outward directed magnetic field, or north (N)
  • Black = strongly negative, inward directed magnetic field, or south (S)

The sunspots in the active region just below the centre of the Sun's disk have the reverse orientation compared to the sunspots of the current solar cycle. This region - no. 905, as assigned by the Space Environment Center - is located in the southern hemisphere with the white (N) spots leading and the dark (S) spots trailing with respect to the Sun's rotation.



Last Update: 1 September 2019
