Relative position of Rosetta and Steins in target plane - 25 August 2008

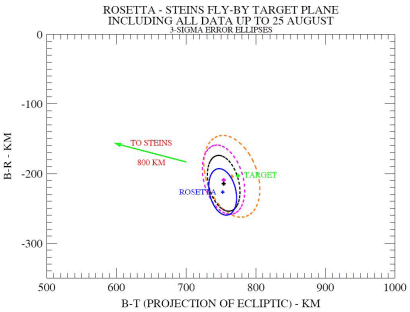

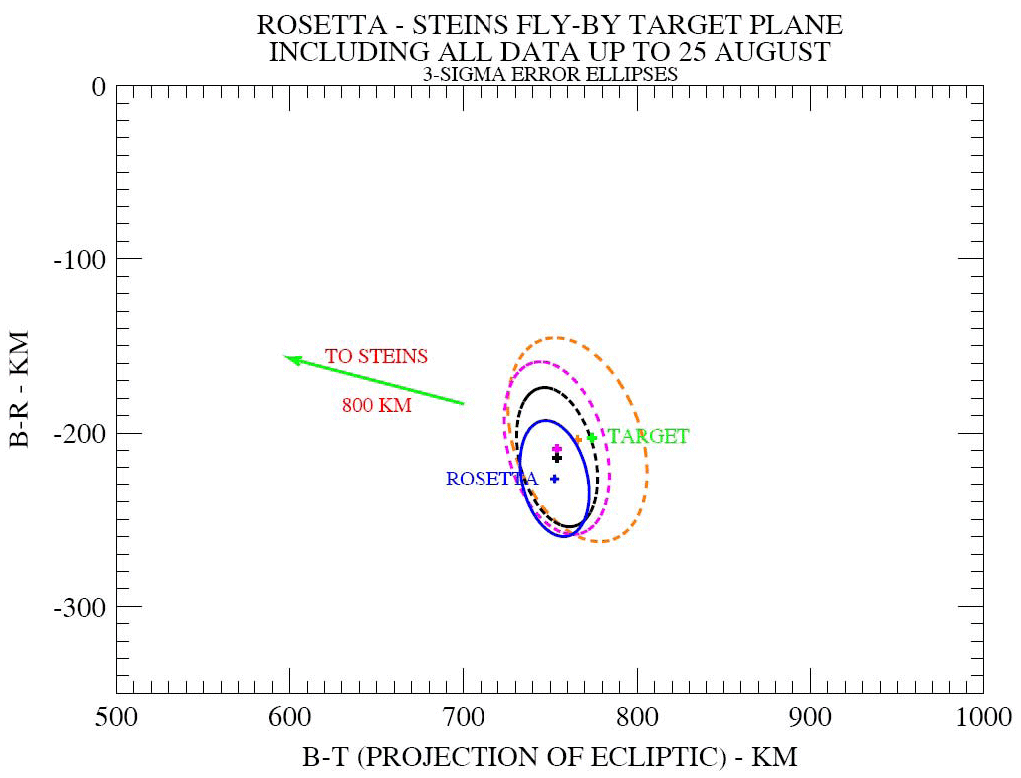

This plot shows the situation in the target plane for the Rosetta fly-by of asteroid Steins. It is based on the optical navigation data as well as all radiometric data (spacecraft tracking) and ground-based astrometric data up to and including 25 August 2008.
Ellipses indicate 3-sigma error circles around Rosetta's determined positions (crosses) relative to asteroid Steins (at the origin, direction indicated with arrow). The target relative position of Rosetta for the Steins fly-by is marked in green and is 800 km from asteroid Steins.
The plot shows four colour-coded positions, each derived with progressively more input from the optical navigation campaign with Rosetta's on-board cameras.
|Orange||The orange cross and associated dashed 3-sigma error ellipse is the solution from 14 August (see related images)|
|Magenta||The magenta cross and associated dashed 3-sigma error ellipse is the solution from 18 August.|
|Black||The black cross and associated dashed 3-sigma error ellipse is the solution from 22 August.|
|Blue||The blue cross and associated 3-sigma error ellipse is the solution from 25 August.|
On 25 August 2008, Rosetta's final projected relative position was 31.9 km from the target and too close to Steins. If there would be no further change to Rosetta's trajectory, the spacecraft would pass asteroid Steins at about 785.9 km (blue cross).
