All-sky image of molecular gas and three molecular cloud complexes seen by Planck

All-sky image of molecular gas and three molecular cloud complexes seen by Planck


Date: 12 February 2012
Satellite: Planck
Depicts: All-sky image of molecular gas with inserts
Copyright: ESA/Planck Collaboration

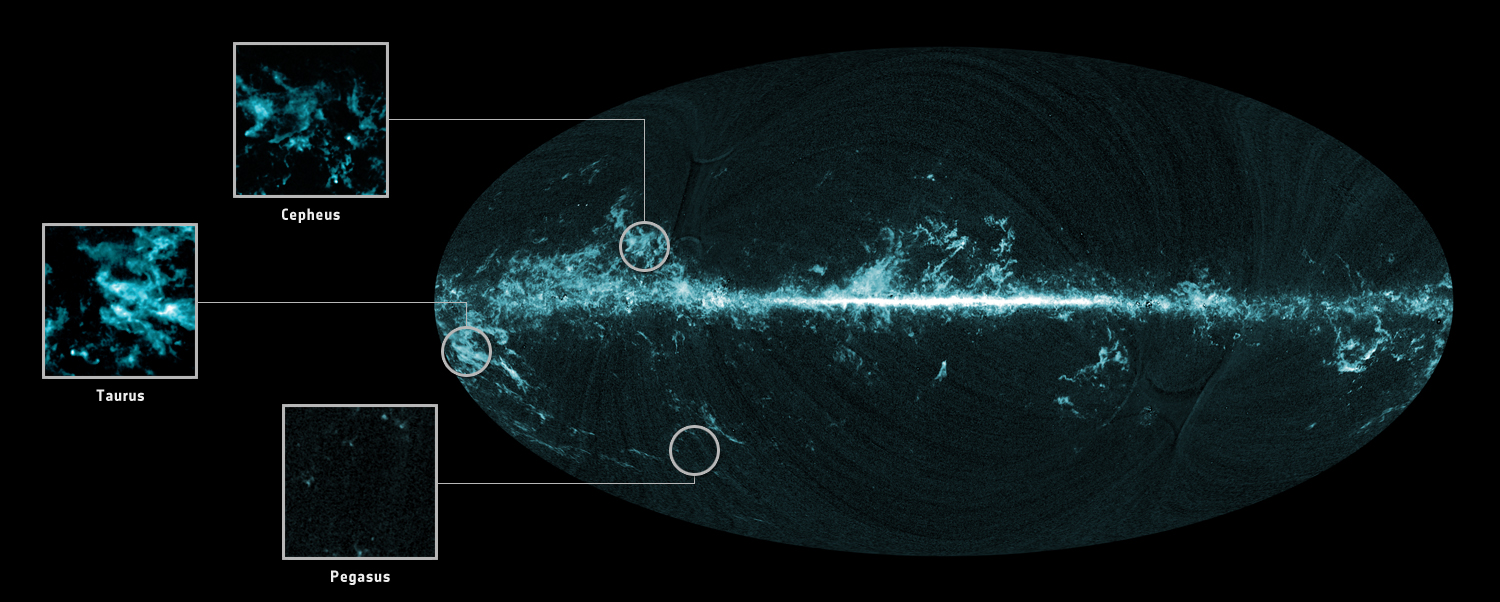

This all-sky image shows the distribution of carbon monoxide (CO), a molecule used by astronomers to trace molecular clouds across the sky, as seen by Planck. The inserts provide a zoomed-in view onto three individual regions on the sky where Planck has detected concentrations of molecular gas: Cepheus, Taurus and Pegasus, respectively.

Molecular clouds, the dense and compact regions throughout the Milky Way where gas and dust clump together, represent one of the sources of foreground emission seen by Planck. The vast majority of gas in these clouds consists of molecular hydrogen (H2), and it is in these cold regions that stars are born. Since cold H2 does not easily radiate, astronomers trace these cosmic cribs across the sky by targeting other molecules, which are present there in very low abundance but radiate quite efficiently. The most important of these tracers is carbon monoxide (CO), which emits a number of rotational emission lines in the frequency range probed by Planck's High Frequency Instrument (HFI).

Emission lines affect a very limited range of frequencies compared to the broad range to which each of Planck’s detectors is sensitive, and are usually observed using spectrometers. But some CO lines are so bright that they actually dominate the total amount of light collected by certain detectors on Planck when they are pointed towards a molecular cloud.

This is the first all-sky map of CO ever compiled. The largest CO surveys thus far have concentrated on mapping the full extent of the Galactic Plane, where most clouds are concentrated, leaving large areas of the sky unobserved.

The all-sky CO map compiled with Planck data shows concentrations of molecular gas in portions of the sky that had never before been surveyed. For example, many regions at high galactic latitude, such as the Pegasus region, had not been covered by previous CO surveys. Planck's high sensitivity to CO also means that even very low-density clouds can be detected, as in the case of the Pegasus clouds.

The Cepheus and Taurus molecular cloud complexes had already been subject of CO surveys, but the images obtained from Planck data allow astronomers to study the cloud structure in greater detail than allowed by previous surveys.

Follow-up observations and further studies of these stellar nurseries will allow a detailed investigation of the physical and chemical conditions that lead to the formation of molecular clouds, shedding new light on the very early phases of star formation.

The stripes visible in the all-sky image are an artifact of the mapping and CO component extraction process.
